Rod End (Piston Rod End Bracket) KJ□Ｄ
 | ・Smooth rotation that can adjust the centering automatically. ・Allowable inclination angle: 19° ・Can be used in various applications, not limited to connecting to a cylinder. ・Can be used as an auxiliary bracket for the oscillating mechanism. ・Reduces the design and assembly labor of the oscillating mechanism. |
| Series | Thread size [mm] | Applicable cylinder |
|---|---|---|
| KJ□Ｄ | M4 to M42 | CJ2 series: ø10, ø16 CM2 series: ø20 to ø40 CG1 series: ø20 to ø100 CA2 series: ø40 to ø100 MB series: ø32 to ø125 MB1 series: ø32 to ø125 CQ2 series: ø12 to ø100 C85 series: ø8 to ø25 C75 series: ø32, ø40 C76 series: ø32, ø40 C95 series: ø160 to ø250 C96 series: ø32 to ø125 CP96 series: ø32 to ø125 |

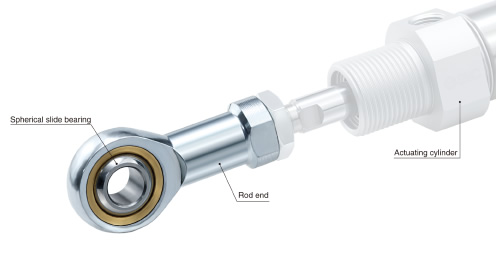

■Smooth rotation that can adjust the centering automatically.

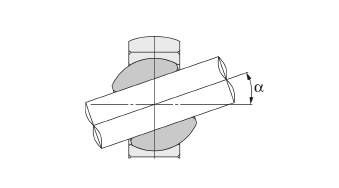

■Allowable inclination angle: 19°
(KJ36D, Pin shape: Round bar)
■Can be used as an auxiliary bracket for the oscillating mechanism.
■Reduces the design and assembly labor of the oscillating mechanism.
■Applicable cylinders
CJ2 series: ø10, ø16
CM2 series: ø20 to ø40
CG1 series: ø20 to ø100
CA2 series: ø40 to ø100
MB series: ø32 to ø125
MB1 series: ø32 to ø125
CQ2 series: ø12 to ø100
C85 series: ø8 to ø25
C75 series: ø32, ø40
C76 series: ø32, ø40
C95 series: ø160 to ø250
C96 series: ø32 to ø125
CP96 series: ø32 to ø125
Rod End (Piston Rod End Bracket) KJ□Ｄ
- Product Code: KJ□Ｄ Rod End (Piston Rod End Bracket)
- Availability: In Stock
-
-
